Orienteering Tips

What is Orienteering? (Rogaines are a form of Orienteering)

Orienteering (which originated in Sweden) is basically an individual cross-country running sport which involves map reading in unfamiliar terrain. Unlike a running/walking race/event, there are no tapes/signs telling you where to go - thats what you need to read the map for.

In many ways, orienteering is the perfect sport. It can be done at the most recreational level which would involve simply enjoying the outdoors while getting minimal exercise, walking, or it can be done at highly competitive levels, running, that require strength, stamina, determination, hours of practice, and fantastic mental abilities.

The objective with typical orienteering is to travel between a series of check points as quickly as possible. With a rogaine this becomes an objective to travel between and visit as many check points as possible in a given time frame. Choosing the fastest routes between the check points is the challenge, often the best routes are not the shortest or most obvious (e.g. taking a track around a piece of thicker forest, verses going straight through).

The other important aspect of orienteering is navigating to the correct spots on the map to find each control (check point). As a beginner you should look to use the bigger, more obvious features on the map (e.g. tracks, fences) and always check your direction using the compass.

It is the person who can plan and execute the best route choices, and navigate to the centre of the circle on the map (where the control will be) that will come away the winner.

Map Symbols - Legend / Key

On your map you will find a legend (or it will be provided separately). Below are the most common symbols you will come across and use to navigate so you can become familiar with them.

Symbol Description Symbol Description Symbol Description
Major Road (sealed) Open ground - clearing Contours (show shape and elevation of land)
Road Rough open ground Index contour (thicker one). There is one every 5 contours
Vehicle Track Forest - easy running Formline (shows shape of land but is not a full contour height)
Foot Track/Path Forest - slower running (less visability) Re-entrant - gully
Small Track/Path

Very thick vegetation - fight

Depression (down)
Indistinct Track/Path Undergrowth on the ground - slow running Small Depression
Fence - Crossable Water trough Erosion Gully
High Fence - Uncrossable Pond Small Erosion Gully
Gate / crossing point Marsh Earth bank
Building Uncrossable Marsh Hill top, form-line hill
Man-made Object (circle is often a water tank) Stream Knoll - small hill
Impassable Cliff Start Point (marked by a triangle) Finish (marked by a double circle)
Passable Cliffs / Rock walls Control / Check Point (marked by a circle) Out of Bounds

Skip To:

Left:
- What is Orienteering?
- Map Symbols
- Helpful Images / Diagrams
- See Sections of actual Event Maps

Right (below) - QUICK TIPS:
- Using a Compass
- North on a Map
- Map Scale
- Contours

Quick Tips

Using a Compass

Silva have a great explanation on how to use a compass.

North Lines

On the map there are blue lines with arrows running through the map which point to north. This means to make sure you have the map facing the right way, and therefore you go the right way, you need to line these north lines up with the red arrow of your compass (which always points north!)

The map north lines are set to magnetic north, unlike topographical maps which are set to true north.

Map Scale

The foot rogaine maps will be 1:10,000. This means 1cm on the map = 100 metres on the ground. One of the mountain bike rogaine maps will be 1:20,000 which means 1cm = 200 metres.

Contours


Contours are the brown lines on the map that show the shape and elevation of the terrain. If contours are close together, the slope is steep, if they are further apart the slope is more gradual. Most of the maps will have 5m contours, which means there are 5 vertical metres between each contour line.



Here are some images that may help explain some of the orienteering concepts:

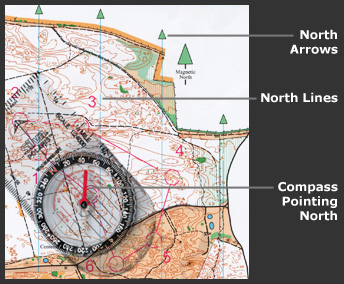

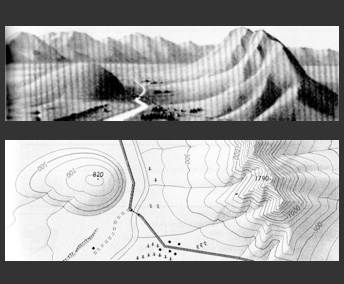

LEFT: 3D terrain verses contours on a map (contours with shading) : RIGHT: North related aspects of map and compass

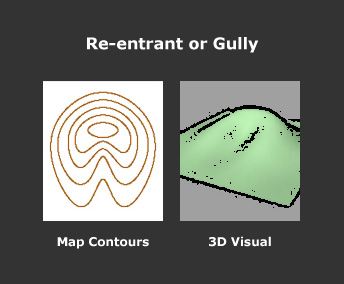

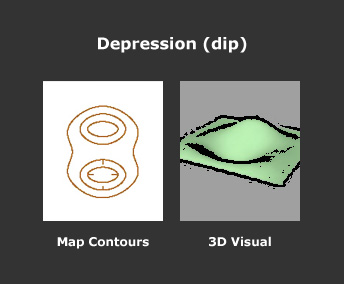

LEFT & RIGHT: Maps verses 3D Visuals - showing how contours show the shape of the land

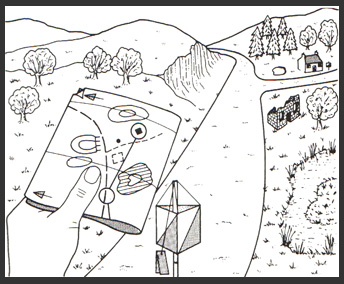

LEFT & RIGHT: Visual representations of how you need to relate the map to the ground, and vice versa, in order to navigate well

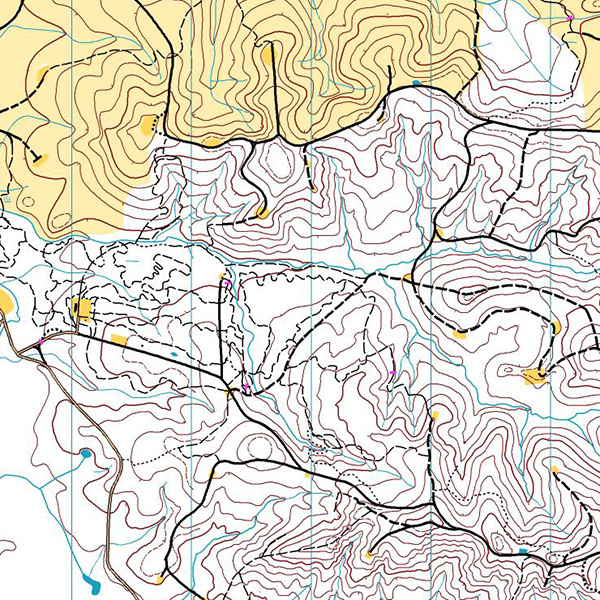

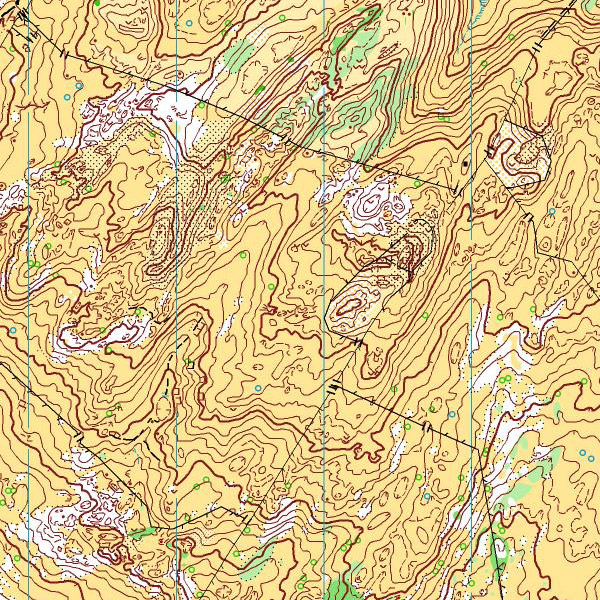

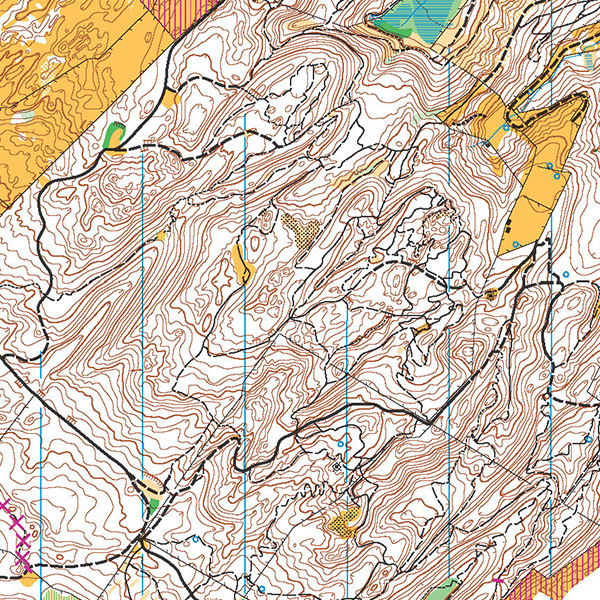

Pieces of example maps:

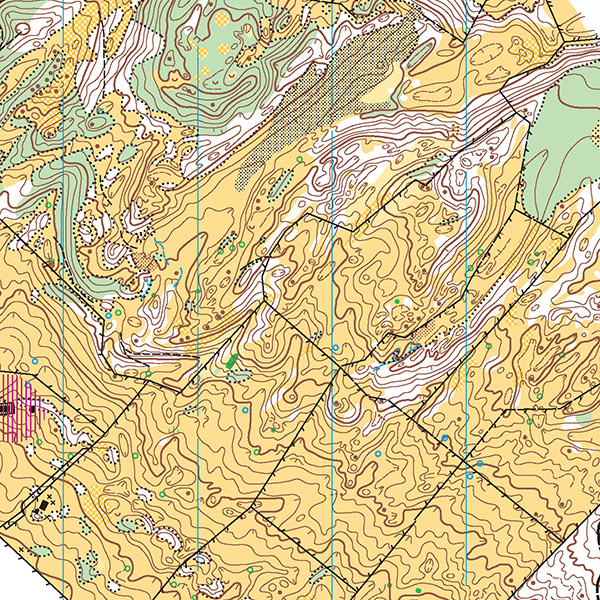

Slater Road Map
Slater Road Part Map - Example Only

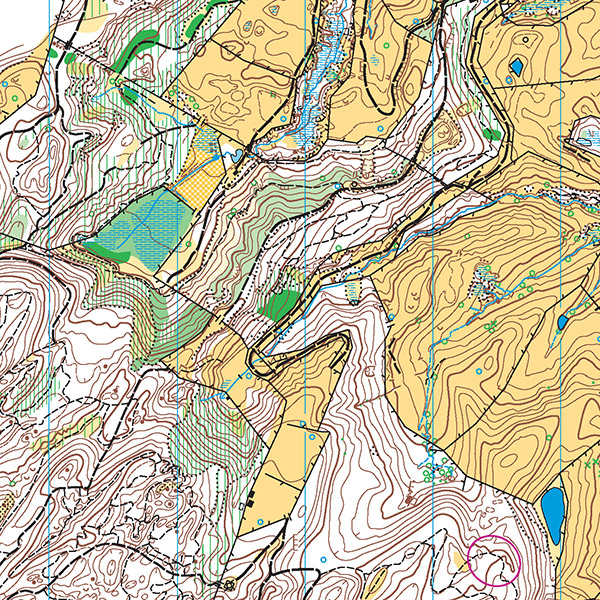

Slater Road Map
Slater Road Part Map - Example Only

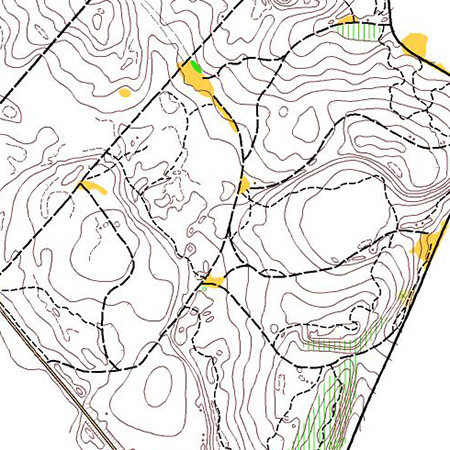

Pulpit Rock Part Map - Example Only
